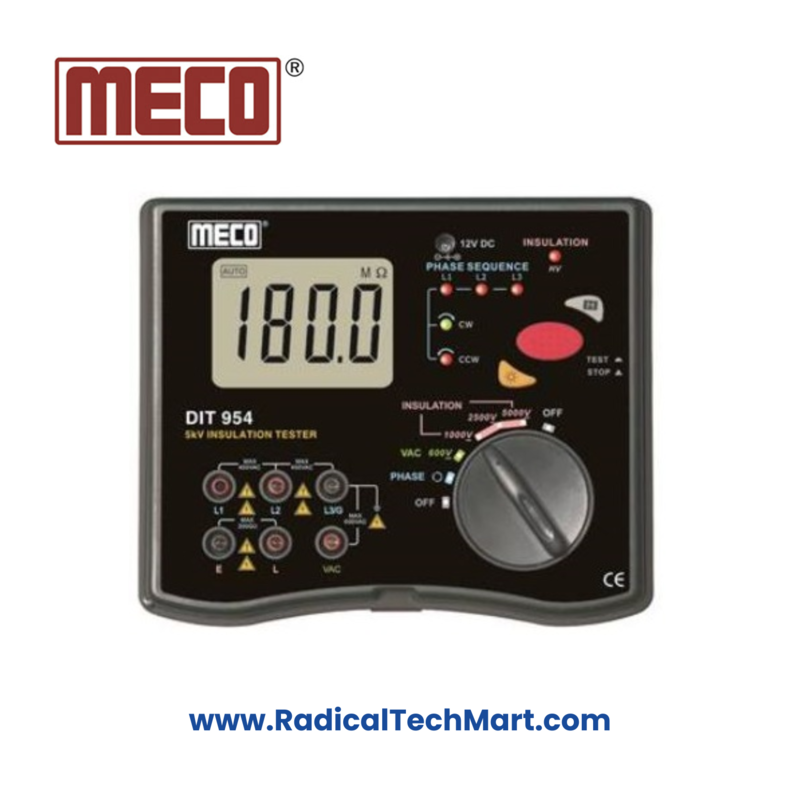

MECO DIT-954 Digital Insulation Tester

Features:

• Insulation Resistance Test Range: 5 KV to 200 G Ohm
• Insulation Resistance Resolution: 0.01 M Ohm
• Insulation Resistance Accuracy: (3% rdg + 5 dgt)
• Insulation Test Voltage: 1000V to 5000V
• AC Voltage Measurement Range: Up to 600 VAC
• AC Voltage Accuracy: (2% rdg + 5 dgt)
• Measurement Resolution: 1 V for AC Voltage
• Display: 3 1/2 Digit (1999 Counts) Large LCD Display
• Backlight: LCD with Indicator Switch for better visibility
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 50°C
• Power Input: 8 x 1.5V AA Batteries (also works with AC Adapter)
• Automatic Range Selection: Insulation Test with Auto Range
• Single Person Operation: Convenient push button for operation
• Data Holding Function: Allows holding the reading for reference
• Phase Sequence Measurement: Measures Phase-Phase Voltage with LED indicator
• LED Indicators:
  • High Voltage Indicator
  • Phase Sequence Indicator
• Protection: Inbuilt protection circuit to prevent damage from reverse voltages
• Display Function Icons: Easily identifiable icons on the display
• Carry Case: Heavy Duty carry case included for portability

Included Accessories:

• Insulation test lead for high voltage (1 set)
• 1-phase wire (1 set)
• AC Adapter
• Heavy Duty Carry Case
• Instruction Manual

Specifications:

• Dimension (L x W x H): 190 x 95 x 75 mm
• Weight: 0.900 Kg
• Display Counts: 1999 Counts
• Resolution of Insulation Resistance: 0.01 M Ohm

Warranty: 1 Year (as per MECO's warranty policy)
